Thiết bị chống rơi IKAR HRA

Thiết bị chống rơi IKAR HRA / HRA E

Self retractable lanyard
Galvanized steel cable or stainless steel cable
Aluminum housing
Winch function

Available Sizes:

DESCRIPTION

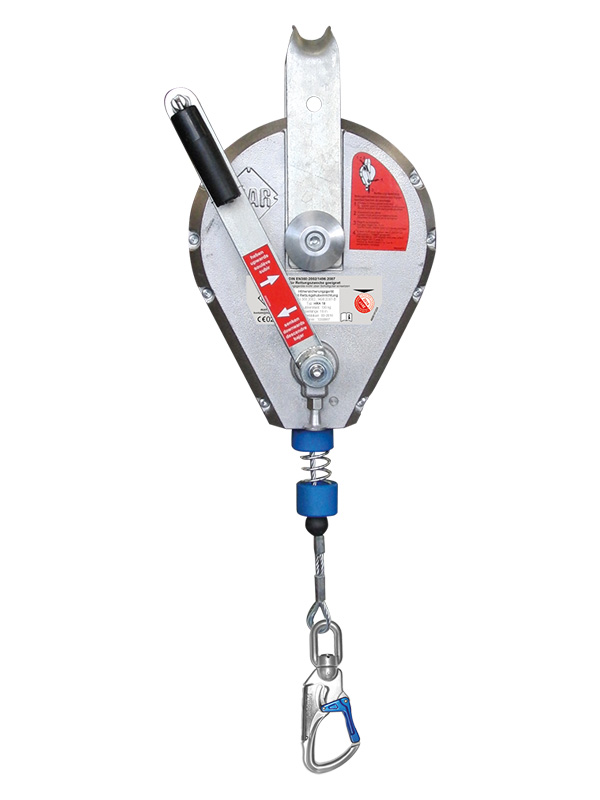

HRA from Ikar is a self retractable lanyard with an aluminum housing with a built-in fall arrester and galvanized steel or Stainless Steel wire. The device is equipped with a rescue winch with a self-locking function and an automatic return of the wire. This to be able to evacuate a person in need.

TECHNICAL INFORMATION

Fall arrest block / inertia reel / retractable type fall arrester, with built in two-way rescue/ recovery mechanism
EN360
Aluminium housing, with a galvanised steel or Stainless Steel cable lifeline
With release pin and two-way winding handle, to engage rescue/recovery mode
Fixed handle anchor attachment point
Attachment/connection handle or can be fitted to a davit or tripod via a bracket
Aluminium double action hook on end of lifeline to EN362

Fall arrest device with rescue lifting and lowering facility, equipped with a recovery mechanism operated by a device mounted handle. After an arrested fall, or if the user becomes incapacitated at the bottom of a shaft, the recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety.

The HRA can be anchored directly to a suitable anchorage point via the attachment handle or alternatively can be mounted on a rescue tripod.

The HRA is not suitable for use over a leading edge and has not been edge tested.

Material: Housing: Aluminium, Wire Rope: galvanized steel or stainless steel 4.8 mm
Marking: According to standard
Temperature range: -40ºC up to +50ºC.
Standard: EN 360
