DMM Pinto Pulleys

DMM Pinto Pulleys with beautifully smooth parallel connection holes and a load bearing becket. Pinto pulleys can be clipped, hitched, spliced or threaded to give numerous work and rescue configurations.

Brand:

Color

Matt Grey
Red

Clear

SKU: DMM/PUL110XX Categories: Pulleys, Confined spaces, Construction industry, Offshore, Rope access technology, Sports climbing, Tree care, Wind energy

DMM Pinto Pulleys

PULLEY I NEED TO OWN.
With beautifully smooth parallel connection holes and a load bearing becket, Pinto pulleys can be clipped, hitched, spliced or threaded to give numerous work and rescue configurations. Loved the world over by Treecare professionals, they are equally as useful for rescue and hauling situations.

A Spacer is available to support the Pinto cheeks when direct attachment of textile products may cause ‘pinching’

FEATURES
To be used on ropes of up to 14mm
A Spacer is available to support the Pinto cheeks when direct attachment of textile products may cause ‘pinching’
Fairlead flares and rounded cheek plate edges that help maintain high working efficiency
Size of attachment holes reduce probability of locking carabiner rotation
Direct connection to textile components at the rounded cross section of anchor holes and curved becket
Textile connections can reduce system costs, increase lift height in mechanical advantage systems, and increase tolerance to torsion
Compatible with DMM carabiners

TECH SPECS

Product Name	Product Code	Colour	MBS	WLL	Dimensions	Weight	Rope Diameter	Certification

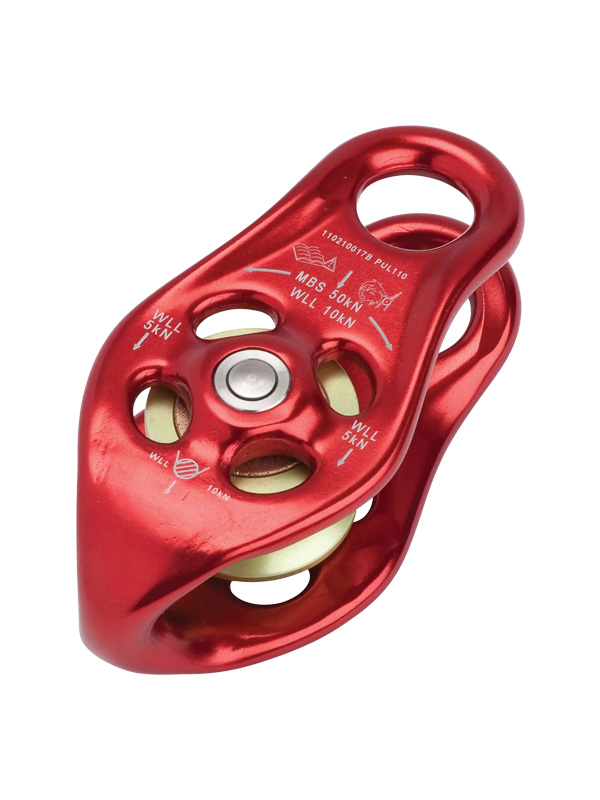

Pinto Red	PUL110	Red	50kN	10kN	90 x 43 x 32mm	114g	14mm Max	EN12278:2007 NFPA 2500 (1983) 2022 ED (G)
Pinto Matt Grey	PUL110MG	Matt Grey	50kN	10kN	90 x 43 x 32mm	114g	14mm Max	EN12278:2007 NFPA 2500 (1983) 2022 ED (G)
